Traditional PV mounting adjustment equipment suffers from significant drawbacks, the PEACO-DJ828, the solar energy application series DJ828 electric linear actuator with its superior overall performance, is ideally suited for complex outdoor PV applications.

The power generation efficiency and service life of a PV power plant depend fundamentally on the adjustment precision, outdoor stability, and durability of the mounting system. Current market offerings for mounting adjustment equipment generally face three major challenges: insufficient load-bearing capacity to meet the requirements of large-scale PV mounts, poor weather resistance, making them prone to corrosion and damage in harsh outdoor conditions such as wind, sand, extreme temperatures, rain, and snow, and weak self-locking capabilities combined with short service lives, leading to issues like mounting misalignment and equipment failure over time.

Addressing these industry shortcomings, the PEACO-DJ828 solar tracker linear actuator, featuring industrial-grade hardware, exceptional weather resistance, and a specialized mechanical interface, meets the operational needs of both fixed and seasonally adjustable solar mounts, making it the preferred drive solution for residential and small-to-medium-sized PV power plants.


I. Key Configuration Advantages: Minimalist Structure, Safe Power Compatibility, and High-Load Self-Locking

No Hall sensor feedback required, integrated travel limit switches, power supply compatible with PV systems, multiple thrust options combined with high static load capacity, suitable for adjusting various types of PV mounting structures.

The PEACO-DJ828 solar panel linear actuator is specifically engineered for outdoor PV applications, offering the core advantages of a simplified structure, low failure rate, and maintenance-free operation.

  • Simplified structure, no feedback: The solar linear actuator operates without Hall signal feedback, relying instead on built-in limit switches for precise travel control. This eliminates complex electronic control systems, significantly reducing the likelihood of failure and minimizing the need for ongoing maintenance.
  • Voltage: 24VDC. The electric linear actuator utilizes a safe 24V DC voltage that is highly compatible with PV power systems, eliminating the need for complex voltage conversion equipment. Installation and wiring are simple and safe, making it suitable for a wide range of distributed PV scenarios. Dynamic load: 10,000N, 12,000N, or 15,000N. The linear actuator offers flexible power specifications, with dynamic thrust options of 10,000N, 12,000N, and 15,000N to meet the load-bearing and adjustment requirements of PV mounting structures of various sizes and configurations.
  • Static load: 45,000N. The actuator boasts an exceptional static load capacity of 45,000N and superior self-locking stability upon power-off, effectively withstanding strong winds, rain, and snow, thereby resolving critical issues such as structural misalignment or vibration during operation.

II. Parameter and Structural Design: Tailored for Low-Frequency, Intermittent PV Operation

Multi-speed settings and ample stroke range, combined with a wear-resistant, corrosion-proof hardware structure, are designed to suit the long-term, low-frequency outdoor operating conditions of PV mounting systems.

The linear electric actuator's parameter design aligns perfectly with the low-frequency, intermittent operational nature of PV mounting systems, offering exceptional practicality and versatility.

  • Speed: 1.4 mm/s, 2 mm/s or 3 mm/s. The solar tracking linear actuator supports three speed settings—1.4 mm/s, 2 mm/s, and 3 mm/s. Lower speeds are prioritized for tilt angle adjustments to ensure smooth operation without mechanical shock, thereby effectively minimizing structural wear and extending the equipment's service life.
  • Stroke: 100 mm ~1200 mm. The stroke range spans 100 mm to 1200 mm, meeting the mechanical travel requirements for pitch angle adjustments across the vast majority of PV mounting systems, ensuring broad compatibility.
  • Material: Aluminum housing, trapezoidal lead screw. Structurally, the electric linear actuator features a high-strength, lightweight aluminum housing that offers excellent corrosion and oxidation resistance, making it suitable for humid, dusty, and exposed outdoor environments. It utilizes a high-efficiency trapezoidal lead screw that delivers superior transmission efficiency, wear resistance, and load-bearing capacity, ensuring stable transmission performance during long-term outdoor operation.

III. Outdoor Weather Resistance: Adaptable to all environments, ensuring stable long-term outdoor operation.

High dust and water resistance, wide operating temperature range, low noise, and flexible cabling, suitable for various outdoor and residential PV applications.

Exceptional environmental adaptability is the core strength of the PEACO-DJ828, enabling it to withstand harsh outdoor conditions.

  • Firstly, the solar tracking linear actuator offers superior protection, meeting the IP66 dynamic dust and water resistance standard; it effectively withstands dynamic moisture and dust ingress in open-air environments, ensuring stable operation amidst rain, snow, humidity, and sandstorms.
  • What's more, the linear actuator features a wide operating temperature range of -30°C to +70°C, allowing for normal operation in extreme cold or heat-maintaining stable performance even under a full load of 15 kN.
  • Furthermore, it delivers an excellent user experience with an operating noise level of just 56 dB, complying with the DS/EN ISO 8746 international noise standard; its quiet operation avoids disturbing residents, making it ideal for residential and rural household PV installations.
  • Lastly, the electric linear actuator offers flexible cabling, supporting replaceable extended cables that can be adjusted according to on-site mounting structure spacing and wiring plans, thereby accommodating diverse installation scenarios.

IV. Mechanical Installation Design: Specialized Structure Minimizes Wear and Ensures Long-Term Stable Operation

Rust-resistant, non-rotating rod-end joints and articulated mounting structure compensate for operational misalignment and eliminate equipment jamming, deformation, and wear.

The mechanical installation structure has been specifically optimized to minimize wear and enhance stability right from the installation stage.

On the one hand, the system features standard stainless steel non-rotating rod-end joints, the stainless steel material offers inherent rust and corrosion resistance, making it suitable for humid outdoor environments. The non-rotating design completely eliminates radial torsional forces during actuator operation, preventing wear or damage to the lead screw and joints caused by lateral torque, thereby protecting the core drive mechanism.

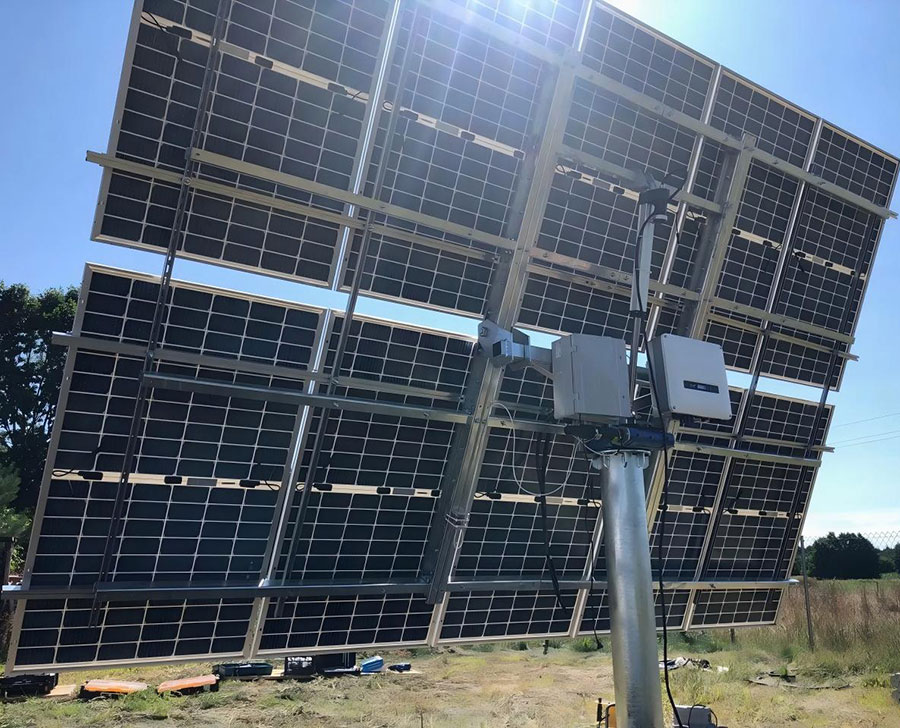

On the other hand, an articulated mounting method is employed at both ends, connecting the PV mounting base at one end and the rotating frame at the other, to allow for mechanical self-adjustment during rotation.

Unlike rigid, fixed structures, this articulated design automatically compensates for minor misalignments during angle adjustments, effectively preventing jamming and structural deformation. This significantly extends the equipment's overall service life and serves as a critical design feature for ensuring the long-term, stable operation of the PV mounting system.

V. Operational Suitability and Durability: Low Consumption, Long Service Life, and Significantly Reduced O&M Costs

Tailored for the intermittent operation of PV systems, features precise, reliable self-locking braking, offers an exceptionally long design life, and delivers a cost-performance ratio far superior to standard linear actuators.

The equipment's operational logic aligns perfectly with PV mounting system usage scenarios, offering distinct advantages in durability and cost-efficiency. Firstly, the unit strictly adheres to a 10% maximum-load duty cycle, making it an ideal match for the low-frequency operational patterns of PV trackers—such as seasonal adjustments and intermittent start-stop cycles—thereby avoiding issues like overheating from overload or accelerated wear and ensuring minimal operational loss over time. Secondly, it incorporates a robust, integrated braking mechanism that locks instantly upon power loss, this powerful self-locking capability ensures precise angle adjustments without drift, maintaining the optimal orientation for power generation. Finally, built to industrial-grade standards with a design life of up to 25 years—far exceeding that of typical electric linear actuators—the unit drastically lowers equipment replacement and maintenance costs, offering outstanding long-term value.

VI. Product Summary: A Cost-Effective, High-Performance Solution for PV Mounting Angle Adjustment

Minimalist structure, comprehensive performance, and broad adaptability, delivering long-term, stable improvements in PV power plant generation efficiency.

In terms of overall performance, the PEACO-DJ828 electric linear actuator eschews the complex electronic control systems found in traditional equipment, utilizing a minimalist mechanical design to ensure high stability and a low failure rate. It integrates three core advantages—superior outdoor weather resistance, robust self-locking braking capabilities, and flexible installation adaptability—making it suitable for a wide range of PV mounting tilt-adjustment scenarios. Whether for small-scale residential distributed PV systems or small-to-medium centralized PV power plants, this device enables precise, stable, and durable angle adjustments. By maximizing solar panel light absorption and overall power generation yields, it stands out as a premium choice that balances performance and cost-efficiency in the field of outdoor PV mounting drive systems.

Peaco Support provides a wide selection of electric linear actuators, including smart-home linear actuators, medical linear actuators, industrial linear actuators, electro-hydraulic linear actuators, etc. They not only feature optional standards, but also can be customized.  The lifting columns and remotes provided by Peaco Support can be used together with the linear actuators.
