- Stock: In Stock
- Model: P-MVE60
- SKU: PEVM-30

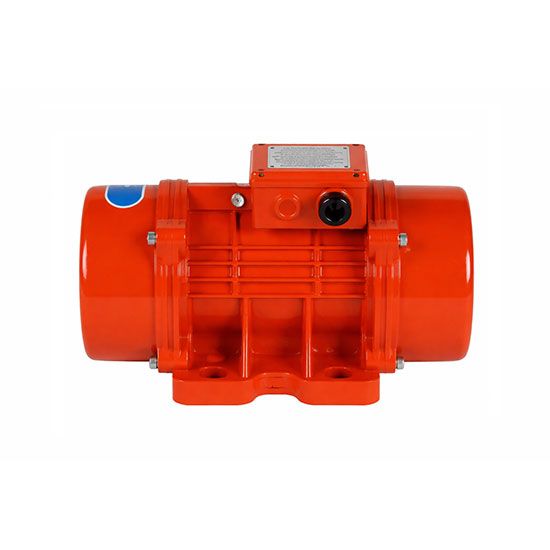

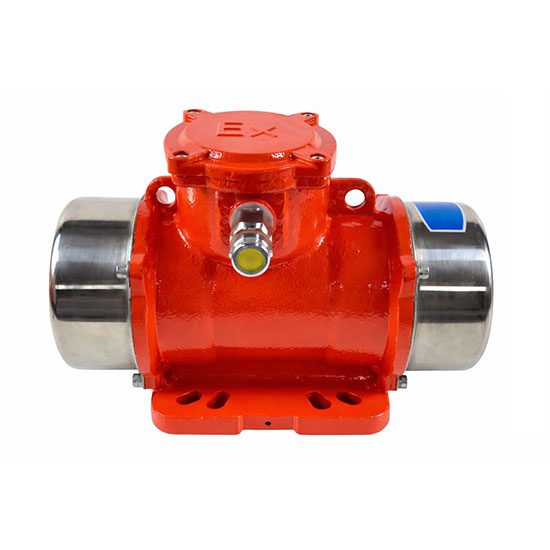

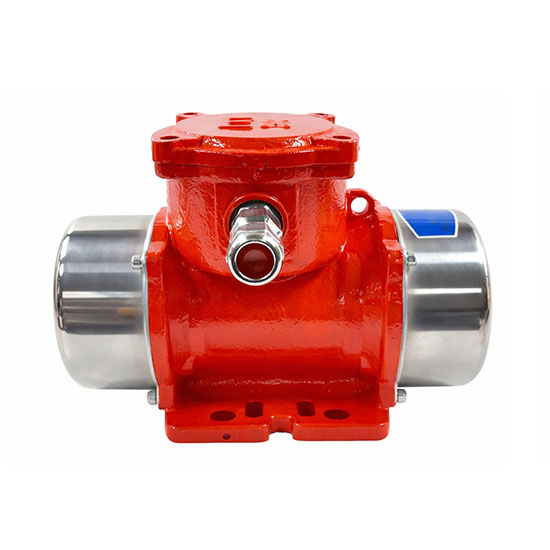

30W explosion-proof vibration motor available in 1-phase (AC110V/220V) and 3-phase (AC220V/380V) configurations, delivers 32kg, 51kg, and 71kg centrifugal force at 1500 RPM, 1000 RPM, and 3000 RPM. With IP66 protection, it's ideal for industrial applications in hazardous areas like mining, metallurgy, coal handling, food processing, and chemical industries, offering low maintenance and high efficiency.
For vibration motors user manual, please visit here Peaco Support Vibration Motors User Manual.
Specification
| Model | P-MVE60/3E-10A0-M | P-MVE40/15E-10A0-M | P-MVE50/1E-30A0-M |
| Phase | Single Phase/Three Phase | ||
| Rated Voltage | AC110V / AC 220V / AC 380V | ||
| Rated Current | 0.16A | 0.26A | 0.38A |
| Rated Power | 30W | ||
| Frequency | 50 Hz / 60 Hz | ||
| Rated Speed | 3000 rpm | 1500 rpm | 1000 rpm |
| Force | 71 kg | 32 kg | 51 kg |
| Pole | 2 pole | 4 pole | 6 pole |
| Shell Material | Aluminum alloy | ||
| Protection Grade | IP 66 (dustproof & waterproof) | ||
| Insulation Grade | F (The highest heat resistant temperature is 155℃) | ||
| Cooling Mode | Natural cooling (IC410) | ||
| Frame No. | 10 | 30 | |
| Certificate type | Explosion-proof Certificate | ||
| Certificate | EX tb IIICT130C Db | ||
| Weight | 11.3 kg | 11.3 kg | 19.7 kg |
Features
- Explosion-Proof Certification & Corrosion Resistance
- Durable Aluminum Alloy Shell
- Oil-Resistant & Anti-Oxidation Power Cord
- High-Performance Stator with Copper Windings
- Low Noise & High Wear Resistance
- Safe & Efficient Installation
- Versatile Applications in Industrial Automation
The 30W explosion-proof vibration motor comes with a certified explosion-proof rating, offering superior corrosion resistance. It’s designed for reliable performance in harsh industrial environments, ensuring safety and longevity.
Featuring an outer shell made of high-quality aluminum alloy with precision casting and a fully enclosed structure, this motor is designed for optimal durability. The vibration motor end cover includes a sealing groove and O-shaped sealing ring, providing enhanced dust-proof, moisture-proof, and vibration-resistant protection. Its compact size, light weight, and resistance to rust and overheating make it ideal for tough industrial applications.
Equipped with a specialized oil-resistant and anti-oxidation power cord, the 30W explosion-proof vibration motor features an anti-vibration outlet protective cover to prevent cable damage from prolonged exposure to vibrations, ensuring safe and reliable operation in demanding environments.
The motor's stator uses pure copper enameled wire windings and is treated with a vacuum dipping process and F-class insulation, offering five times the lifespan of ordinary motors. This enhances both performance and durability in critical industrial applications.
Designed with pure copper wire and precision bearings, this motor offers low noise levels and high wear resistance, ensuring long-term reliability and minimal maintenance in vibration-heavy environments.
During installation, the explosion-proof hose must be securely connected to the explosion-proof vibration motor to ensure safe, efficient operation in hazardous environments. Proper installation is key to maintaining motor performance and safety.
The Peaco Support explosion-proof vibration motor is ideal for enhancing flow in electroplating, agricultural, and chemical industries. It can be installed in silos or hoppers to accelerate material flow, improve efficiency, and is suitable for a wide range of industrial automation applications where safety is a priority.
Details
Note: Vibration motor with special voltage or specifications can be customized.
Drawing (unit: mm)
- 2-pole explosion-proof vibration motor drawing:
- 4-pole explosion-proof vibration motor drawing:
- 6-Pole explosion-proof vibration motor drawing:
Installation Dimension (Unit: mm)
| Model | Pole | A | B | C | D | E | F | G | H | I | L | M | N | Cable Gland |
| P-MVE60/3E-10A0-M | 2 | 70 | 106 | 210 | 130 | 136 | 12 | 10 | 52.5 | 96 | 120 | 45 | 86 | M16*1.5 |
| P-MVE40/15E-10A0-M | 4 | 70 | 106 | 210 | 130 | 136 | 12 | 10 | 52.5 | 96 | 120 | 45 | 86 | M16*1.5 |
| P-MVE50/1E-30A0-M | 6 | 90 | 125 | 276 | 155 | 173 | 19 | 13 | 79 | 140 | 160 | 58 | 132 | M20*1.5 |
